◆采用国产龙芯 LS3A4000四核处理器
◆支持Loongnix (Linux)操作系统

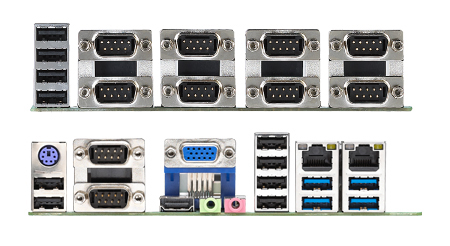

◆4*USB 3.0, 8*USB 2.0, 6*COM, 2*千兆网口
◆SVIO双层设计, 搭配SV-M5子卡, 可最多扩展至12*COM, 18*USB
◆1*PCIe x16, 2*Mini-PCIe支持mSATA和Wifi/4G
◆1*VGA, 1*HDMI, 支持双屏异显
| General | |
| CPU | 龙芯® LS3A4000, Quad-Core, 1.8-2.0 GHz, TDP 30-60W |
| Chipset | 龙芯® LS7A1000, TDP 5-8W |
| Memory | DDR4-2400, 2*U-DIMM, up to 32 GB |
| Storage | 2*SATA 3.0, 1*mSATA |
| Expansion Interface | 1*PCIe x16 slot (x8/x4 or PCIe x4/x1),2*Mini-PCIe (1*mSATA,1*Wifi/3G/4G supported) |
| BIOS | PMON BIOS |
| System | Loongnix (Linux) |
| I/O Interface | |
| Ethernet | 2*Marvell® 1Gbps Ethernet Controller (PHY), RJ45 |
| SerialPort | 5*RS232, 1*RS232/RS485 (Up to 12*RS232 with SV-M5-CU) |
| USB | 4*USB 3.0, 8*USB 2.0 (Up to 18*USB with SV-M5-CU) |
| Audio | Realtek® ALC269 HDA Codec, with MIC/Line-out |
| PS/2 | 1*PS/2 Port (Keyboard & Mouse) |
| GPIO | 8*Programmable GPIO |
| Other | 1*SMbus, 1*I2C, 1*EJTAG, 1*UART |
| Display | |
| Display Interface | 1*VGA: max resolution up to1920*1080@60Hz1*HDMI: maxresolution up to 1920*1080@60Hz |
| Multiple Display | Dual |
| Mechanical & Environment | |
| Dimension | Mini-ITX, 170*170mm |
| Power Input | ATX PSU |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |
