◆采用国产飞腾FT-2000/4或D2000处理器
◆支持麒麟、统信UOS操作系统
◆8*USB 3.0, 3*USB 2.0, 6*COM, 2*千兆网口

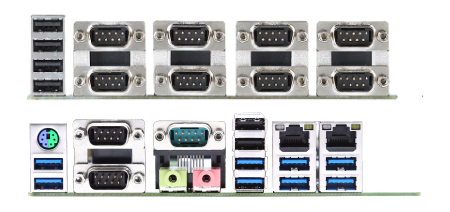

◆SVIO双层设计, 搭配SV-M5子卡, 可最多扩展至12*COM, 18*USB
◆1*PCIe x16, 可用于搭载显卡提供显示接口
◆2*Mini-PCIe支持mSATA和Wifi/3G/4G
| CPU | Phytium® FT-2000/4, 4 Cores, 2.2/2.6 GHz, TDP 10WPhytium® D2000, 8 Cores, 2.0~2.6 GHz, TDP 25W |
| Memory | DDR4-3200, 2*U-DIMM, up to 32 GB |
| Storage | 3*SATA 3.0, 1*mSATA |
| Expansion Interface | 1*PCIe x16 slot,2*Mini-PCIe (1*mSATA,1*Wifi/3G/4G supported) |
| BIOS | Byosoft BIOS |
| System | Kylin, UOS |
| I/O Interface | |
| Ethernet | 2*Realtek® 1Gbps Ethernet Controller, RJ45 |
| SerialPort | 6*RS232 (Up to 12*RS232 with SV-M5-CU) |
| USB | 8*USB 3.0, 3*USB 2.0 (Up to 18*USB with SV-M5-CU) |
| Audio | Realtek® ALC662 HDA Codec, with MIC/Line-out |
| PS/2 | 1*PS/2 Port (Keyboard & Mouse) |
| GPIO | 8*Programmable GPIO |
| Other | 1*I2C,1*JTAG, 1*UART |
| Mechanical & Environment | |
| Dimension | Mini-ITX, 170*170mm |
| Power Input | ATX PSU |
| Temperature | Operation: 0℃~60℃, Storage: -25℃~75℃ |
| Relative Humidity | Operation: 10%~90%, Storage: 5%~95%, non-condensing |
